Getting Started with Sysmac Studio (Omron Motion Controller)

Starting the Sysmac Studio

The Sysmac Studio starts and the following window is displayed.

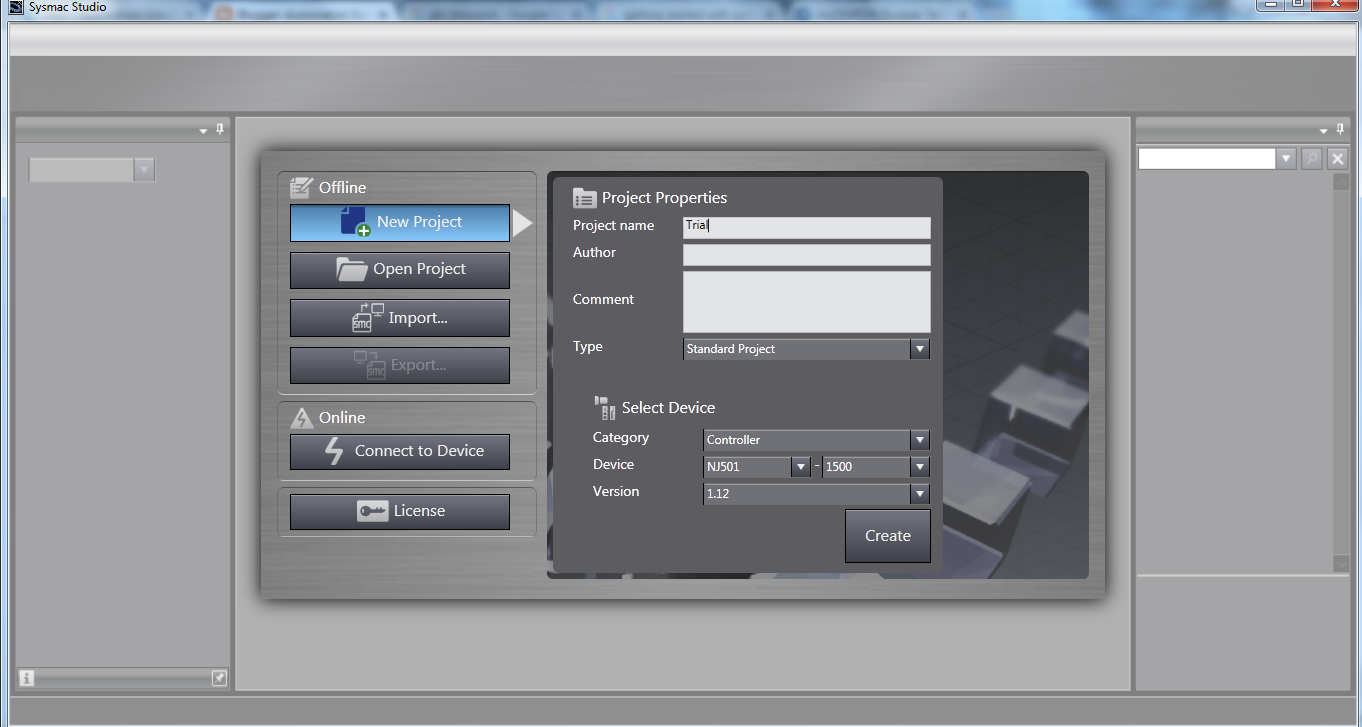

Click the New Project Button in the Project Window.

 Enter the project name, author, and comment in the Project Properties.
select the device category and the device to use, and then click the Create Button.

Now if you have Ethercat device connected to the Controller.
Then open Configuration and Setup tool and enter Ethercat.

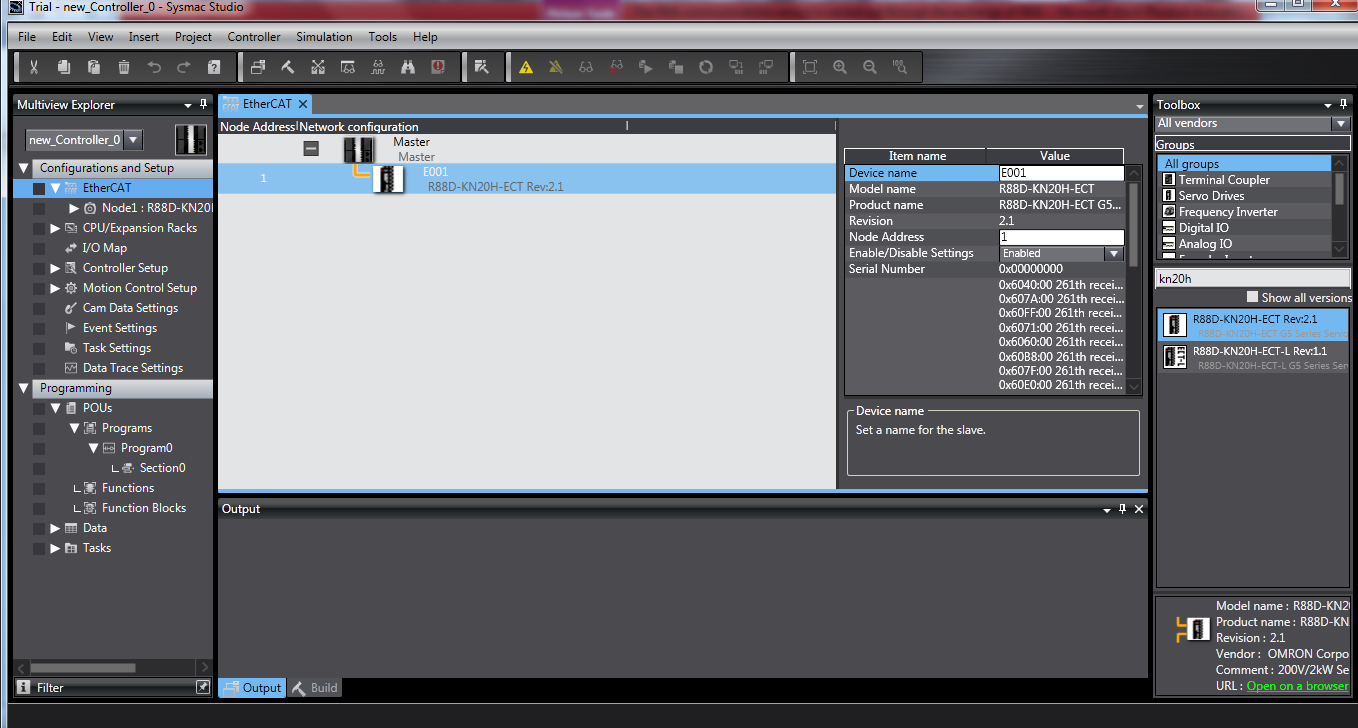

Now pick and place ethercat devices from toolbox present at the rightmost portion of window

Lets suppose there is a Servo Drive R88D-KN15H connected to the network with node address 1.

Enter the device name and node address

Now Open Motion Control Setup and an axis.

The window after axis setting add is shown below

Change Axis basic setting if required.

As Axis type from Virtual Servo Axis to Servo Axis also add Output device as node 1

After the basic setting lets come to unit conversion setting

Here in travel distance:: Command pulse count per motor rotation we will use is 1048576.

Because the motor encoder bit resolution is 20 therefore 2^20 = 1048576
